Model No. : MJ83
Type : Underground Drill

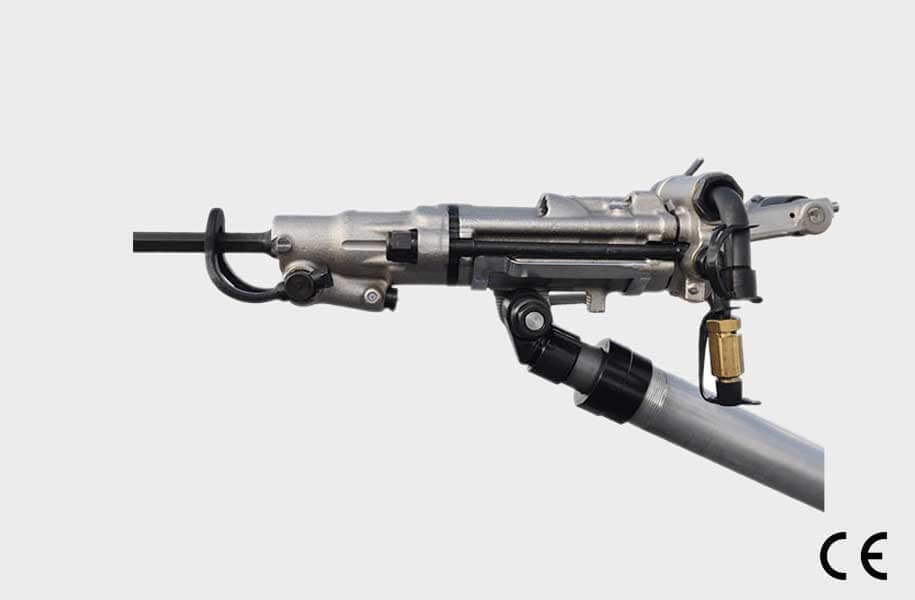

MJ83 Underground Drill
The Mindrill S83F jackleg drill is a top choice for drilling in Mexico and the USA. It’s a favorite of both managers and operators because it’s easy to operate, has a robust construction, and is low maintenance. The water-flushing feature is also a plus. You can’t go wrong with this drill – it’s a great investment.
Technical Specifications:
| Weight : | 32.4 kg |
| Length without Leg : | 688 mm |
| Air consumption @6 Bar : | 86.36 l/s |
| Drill Steel Chuck Hex : | 22×108 mm |
| Piston diameter : | 76 mm |
| Stroke length : | 64 mm |
| Air Hose Connection : | 25 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2256 BPM |
| Compatible Pusher Legs : | TUL 2B, FL7 |
| Weight : | 72 lb |
| Length without Leg : | 27 1/4 in |
| Air consumption @6 Bar : | 183 cfm |
| Drill Steel Chuck Hex : | 7/8 x 4¼ in |
| Piston diameter : | 3 in |
| Stroke length : | 2.5 in |
| Air Hose Connection : | 1 in |
| Water Connection : | 1/2 in |
| Impact rate : | 2256 BPM |
| Compatible Pusher Legs : | TUL 2B, FL7 |
- Metric
-
Weight : 32.4 kg Length without Leg : 688 mm Air consumption @6 Bar : 86.36 l/s Drill Steel Chuck Hex : 22×108 mm Piston diameter : 76 mm Stroke length : 64 mm Air Hose Connection : 25 mm Water Connection : 13 mm Impact rate : 2256 BPM Compatible Pusher Legs : TUL 2B, FL7 - Imperial
-
Weight : 72 lb Length without Leg : 27 1/4 in Air consumption @6 Bar : 183 cfm Drill Steel Chuck Hex : 7/8 x 4¼ in Piston diameter : 3 in Stroke length : 2.5 in Air Hose Connection : 1 in Water Connection : 1/2 in Impact rate : 2256 BPM Compatible Pusher Legs : TUL 2B, FL7
Ordering Part No.
| Part No. | Chuck Size | Air Connection |
|---|---|---|
| 5111 139 000 | 22 x 108 mm(7/8 x 4¼ in) | 25 mm(1 in) |
Key Features
- Most popular choice in Mexico & USA
- Favorite amongst both managers and operators in all mining conditions
- High penetration rate, low maintenance costs, robust construction, easy operation
- Can be used as a sinker drill
- Water-flushing available
- Great return on investment
- Parts interchangeable with Mid Western S83F jackleg drill
