Model No. : ML100
Type : Airline Lubricators

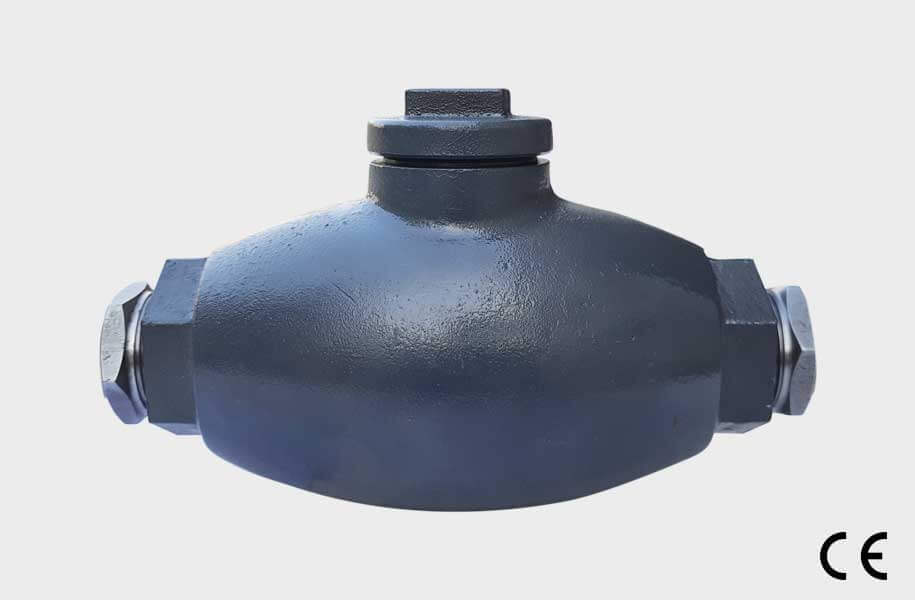

ML100 Lubricator
Mindrill lubricator ML100 does its best to ensure you pneumatic tools run smoothly, and that ML100 lubricator helps you to achieve just that. the ML100 Lubricator is a customer favorite and will be sure not only to enhance the drill life and performance by protecting against corrosion and machine wear and tear but also help keep any pneumatic tools in top-notch condition and ready for your next big project.
Technical Specifications:
| Weight Empty: | 3.5 kg |
| Weight Full : | 5.5 kg |
| Capacity : | 700 ml |
| Length : | 200 mm |
| Air consumption: | 48 l/s |
| Piston Diameter : | 115 mm |
| Safety Fill Cap Diameter : | 48 mm |
| Working Pressure : | 17 kg/cm3 |
| Pipe Thread Size at Intake or Outlet : |
1 1/4 in |
| Bushing Size Available : | 1 1/4 in – 1 in or 3/4 in |
| Weight Empty: | 8 lb |
| Weight Full : | 12 lb |
| Capacity : | 11/2 Pints |
| Length : | 8 in |
| Air consumption: | 102 cfm |
| Piston Diameter : | 4 1/2 in |
| Safety Fill Cap Diameter : | 1 7/8 in |
| Working Pressure : | 250 psi |
| Pipe Thread Size at Intake or Outlet : |
1 1/4 in |
| Bushing Size Available : | 1 1/4 in – 1 in or 3/4 in |
- Metric
-
Weight Empty: 3.5 kg Weight Full : 5.5 kg Capacity : 700 ml Length : 200 mm Air consumption: 48 l/s Piston Diameter : 115 mm Safety Fill Cap Diameter : 48 mm Working Pressure : 17 kg/cm3 Pipe Thread Size at Intake
or Outlet :1 1/4 in Bushing Size Available : 1 1/4 in – 1 in or 3/4 in - Imperial
-
Weight Empty: 8 lb Weight Full : 12 lb Capacity : 11/2 Pints Length : 8 in Air consumption: 102 cfm Piston Diameter : 4 1/2 in Safety Fill Cap Diameter : 1 7/8 in Working Pressure : 250 psi Pipe Thread Size at Intake
or Outlet :1 1/4 in Bushing Size Available : 1 1/4 in – 1 in or 3/4 in
Ordering Part No.
| Part No. | 5131 103 000 |
|---|
Key Features
- Easy to handle
- Large cross-sections
- No choking
- Maintenance-free
- Minimization of tool wear
- Prevention of icing and rust
- Ecologically harmless operation
- No interruption of work
- Increased tool productivity
- Reduction in energy requirement
- Reduction in your tool repair & maintenance costs
