Model No. : YODHA450
Type : Crawler Drills

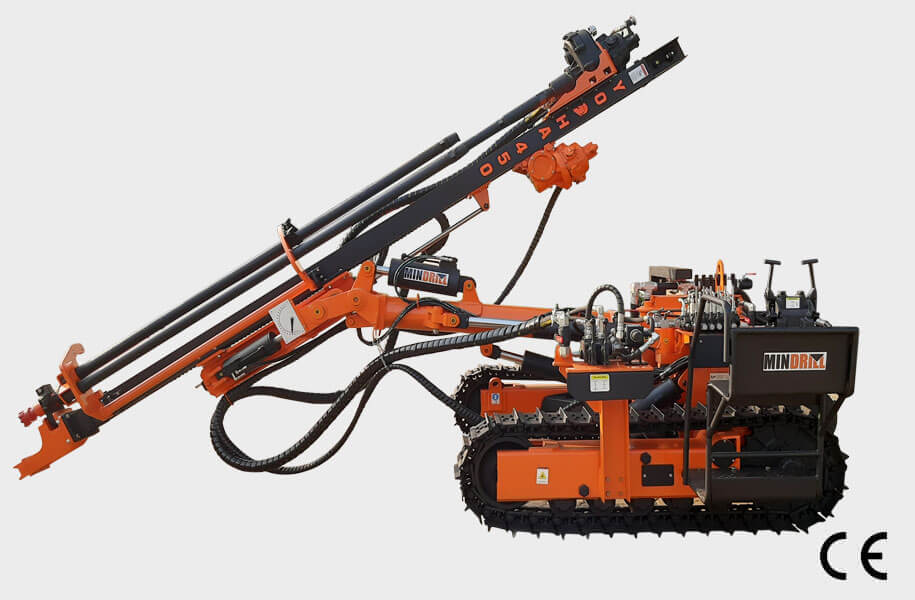

DTH Crawler Drill YODHA450
DTH Crawler Drill YODHA450 by Mindrill, is a versatile and rugged drill rig that can handle steep climbs and rough terrain with ease. The crawler drill ensures fast and efficient drilling while servicing is quick and easy – requiring just one person. The YODHA450 is suitable for limestone, aggregate quarries, surface mining applications, and construction.
Benefits of Crawler Drilling Rig:
DTH Crawler Drilling rig YODHA450 can be interchanged between Down-The-Hole and top-hammer drilling to meet different application needs. Additionally, the YODHA450 is easy to transport due to its compact dimensions and low center of gravity, making the machine very stable.
Key Features
- Heavy-duty crawler drill for quarrying & open-pit mining
- Best-in-class 11.5HP traction air motors
- Powerful feed & rotation assembly for high-impact drilling
- Hydraulic oscillating cylinders for suspension & stability
- Centralized control panel for effective control
- Integrated drill rod carrier for smooth transport
- Water flushing/water mist system optional
- Seating platform for operator
- Supplied with starter kit for quick start in operations
- Capable of drilling with DTH hammer or top hammer
- Powerful traction system for better marching

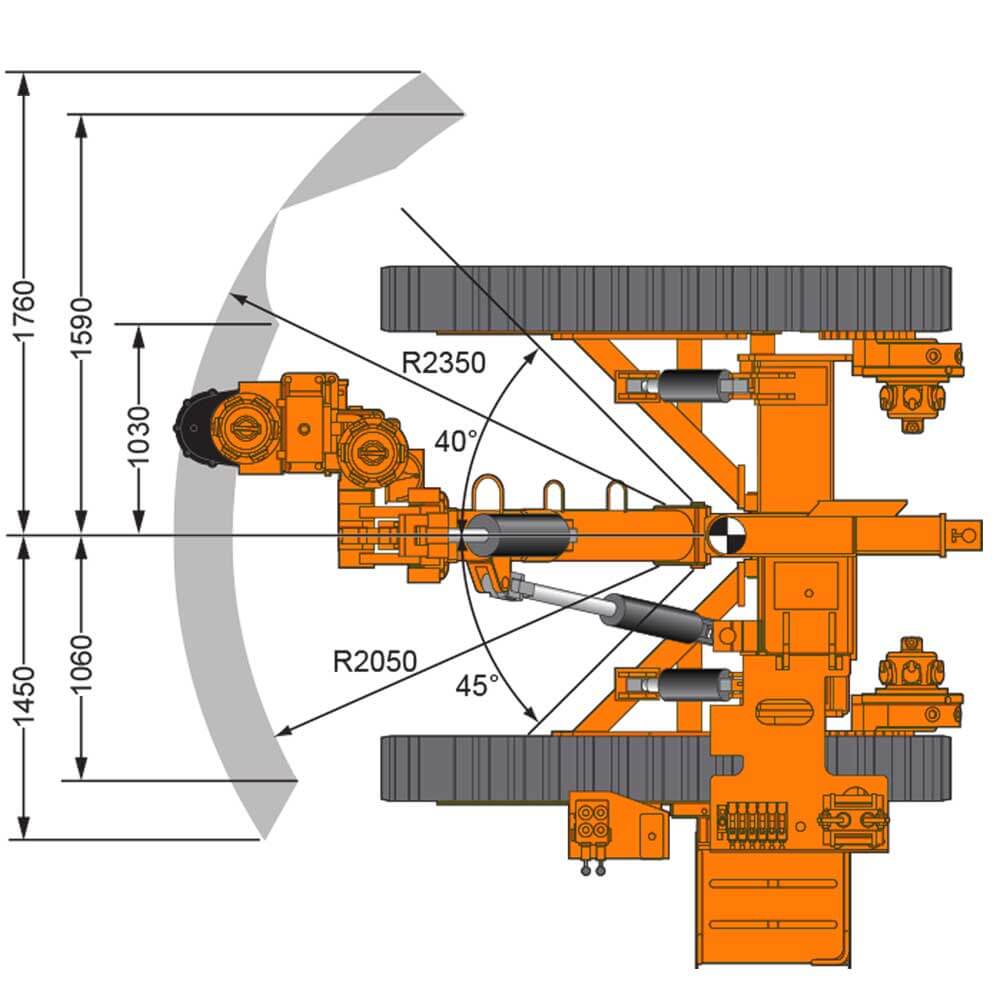

- Bigger drilling coverage area
Technical Specifications:
| Carrier | |
| Tramming speed : | 3.0 km/h |
| Track oscillation : | ±10° |
| Steel feed | |
| Feed extension : | 1219 mm |
| Max. feed rate : | 0.25 m/s |
| Max feed force : | 21 kN |
| Total length : | 5750 mm |
| Travel length : | 4250 mm |
| Drill tube / Rod size | |
| Rod/Pipe size : | 76 mm |
| Transport Dimensions | |
| Weight: | 4800 kg |
| Height : | 2430 mm |
| Length : | 5750 mm |
| Width : | 2480 mm |
| Hole range | |
| Range : | 105 – 127 mm |
| Recommended Air Compressor DTH | |
| Free Air Delivery (FAD) : | 500-550 cfm |
| Operating Pressure : | 175-220 psi |
| Carrier | |
| Tramming speed : | 1.86 mph |
| Track oscillation : | ±10° |
| Steel feed | |
| Feed extension : | 48 in |
| Max. feed rate : | 49.2 ft/min |
| Max feed force : | 4720 lbf |
| Total length : | 226.3 in |
| Travel length : | 167.3 in |
| Drill tube / Rod size | |
| Rod/Pipe size : | 3 in |
| Transport Dimensions | |
| Weight: | 10582 lb |
| Height : | 8 ft |
| Length : | 18 ft 10.5 in |
| Width : | 8 ft 2 in |
| Hole range | |
| Range : | 4.13 in – 5 in |
| Recommended Air Compressor DTH | |
| Free Air Delivery (FAD) : | 14158 -15574 l/min |
| Operating Pressure : | 12.06-15.16 bar |
- Metric
-
Carrier Tramming speed : 3.0 km/h Track oscillation : ±10° Steel feed Feed extension : 1219 mm Max. feed rate : 0.25 m/s Max feed force : 21 kN Total length : 5750 mm Travel length : 4250 mm Drill tube / Rod size Rod/Pipe size : 76 mm Transport Dimensions Weight: 4800 kg Height : 2430 mm Length : 5750 mm Width : 2480 mm Hole range Range : 105 – 127 mm Recommended Air Compressor DTH Free Air Delivery (FAD) : 500-550 cfm Operating Pressure : 175-220 psi - Imperial
-
Carrier Tramming speed : 1.86 mph Track oscillation : ±10° Steel feed Feed extension : 48 in Max. feed rate : 49.2 ft/min Max feed force : 4720 lbf Total length : 226.3 in Travel length : 167.3 in Drill tube / Rod size Rod/Pipe size : 3 in Transport Dimensions Weight: 10582 lb Height : 8 ft Length : 18 ft 10.5 in Width : 8 ft 2 in Hole range Range : 4.13 in – 5 in Recommended Air Compressor DTH Free Air Delivery (FAD) : 14158 -15574 l/min Operating Pressure : 12.06-15.16 bar
Ordering Part No.
| Part No. |
|---|
| 5114 106 000 |
