Model No. : MDEMJ115
Type : Excavator Attachments

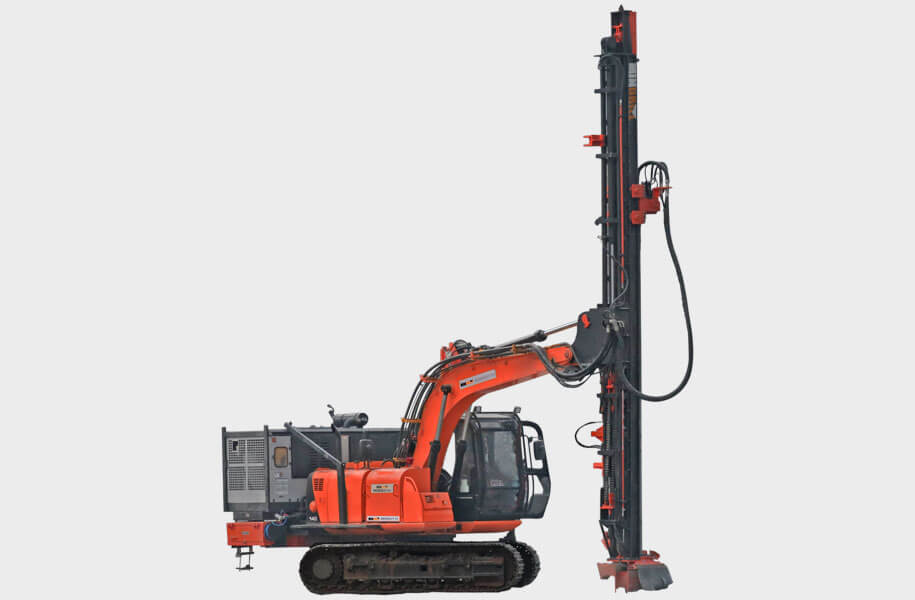

MDEMJ115 “Tiger” Excavator Attachment
The Mindrill MDEMJ115 “Tiger” excavator attachment is an effective, versatile, and cost-effective solution for the mining and construction industry. The versatile attachment with any excavator yields a powerful drilling rig that can be used for blast hole mining or construction applications.
Key Features

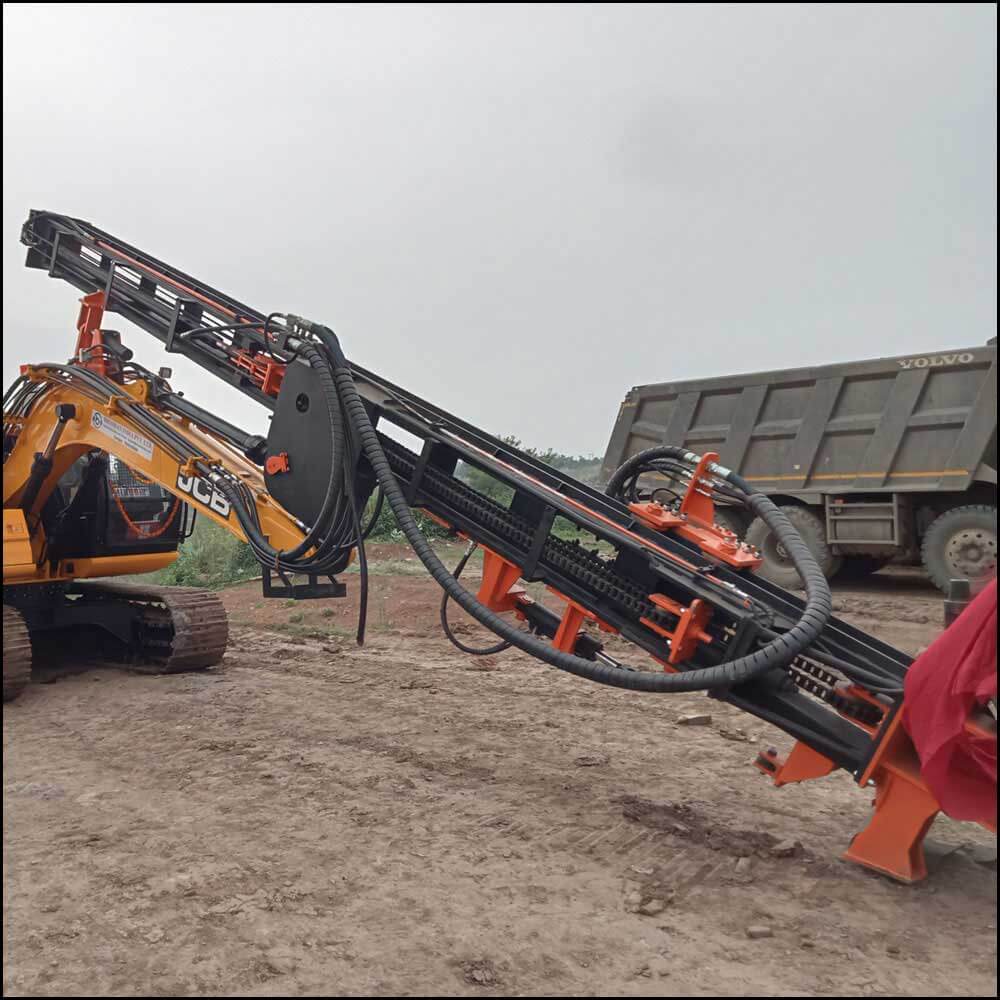

HEAVY-DUTY FEED
Available for 6m (20ft) or 9m (30ft) drilling, the MDEMJ115 has a heavy duty feed for the toughest of terrains. It comes with a hydraulic feed system as standard

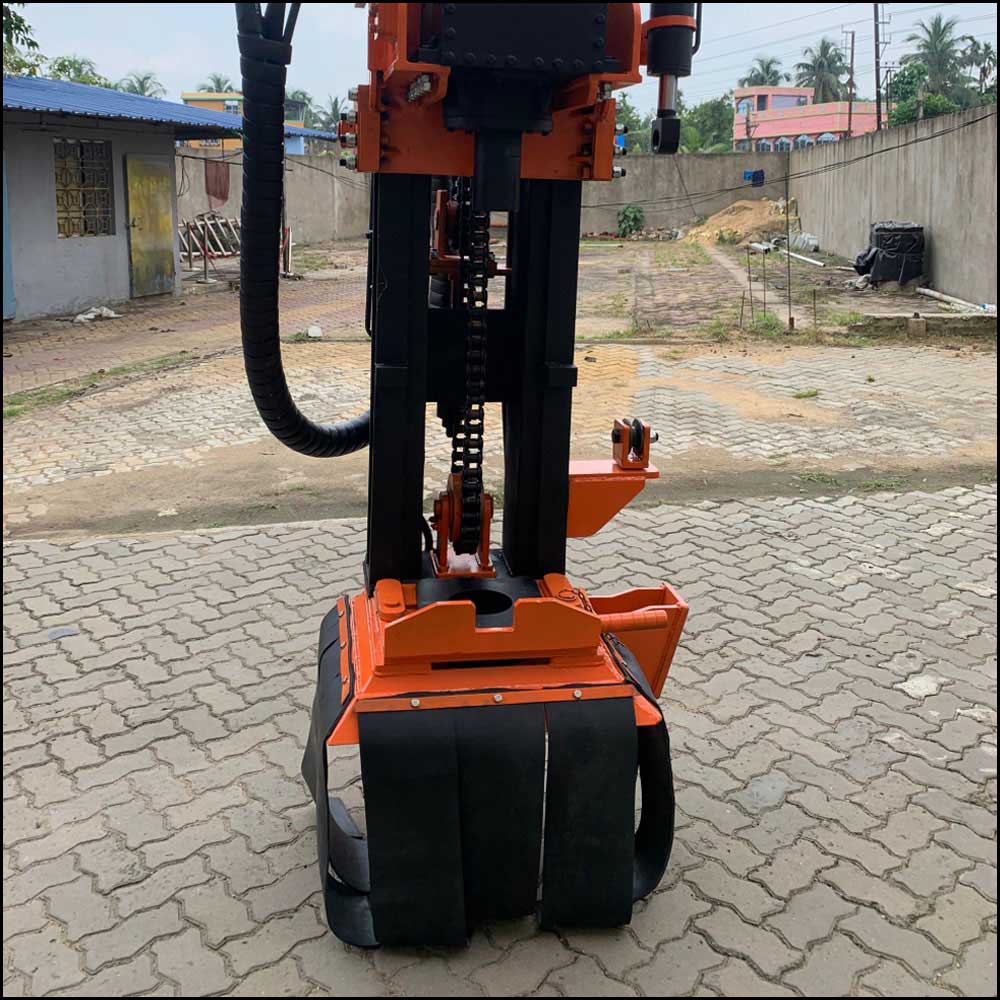

WATER FLUSHING
Continuous water flushing for effective dust suppression during drilling operations for operator safety and compliance

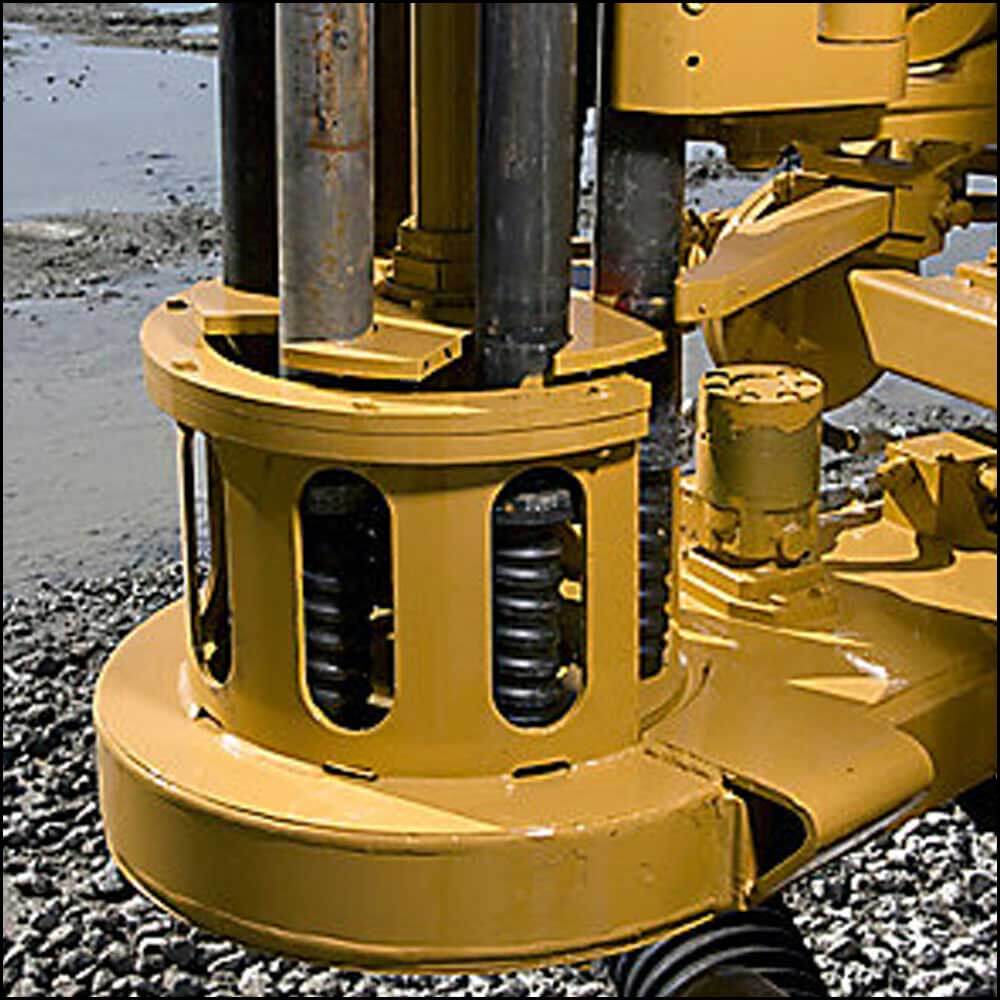

ROD CHANGER
Automatic rod changer option available

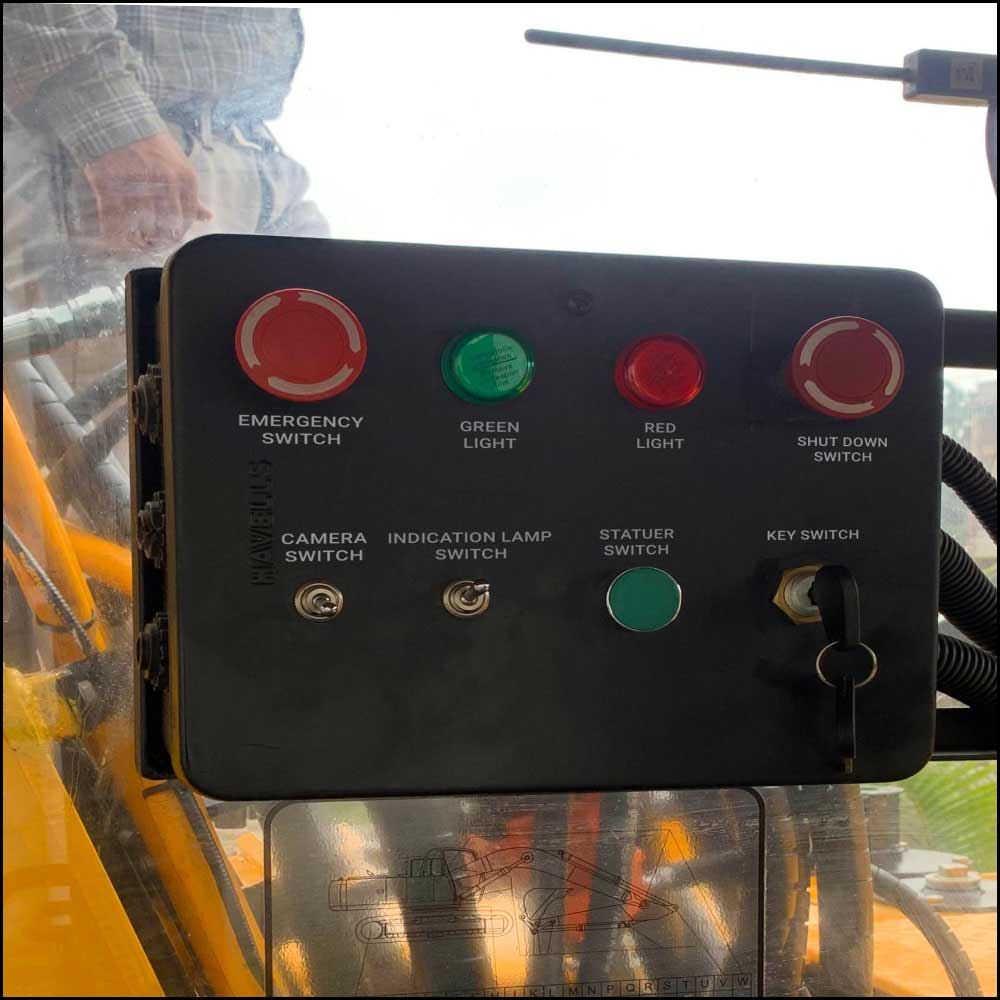

IN-CABIN ELECTRONIC CONTROL SYSTEM
Electronic controls seamlessly integrated onto excavator dashboard for effective controlling

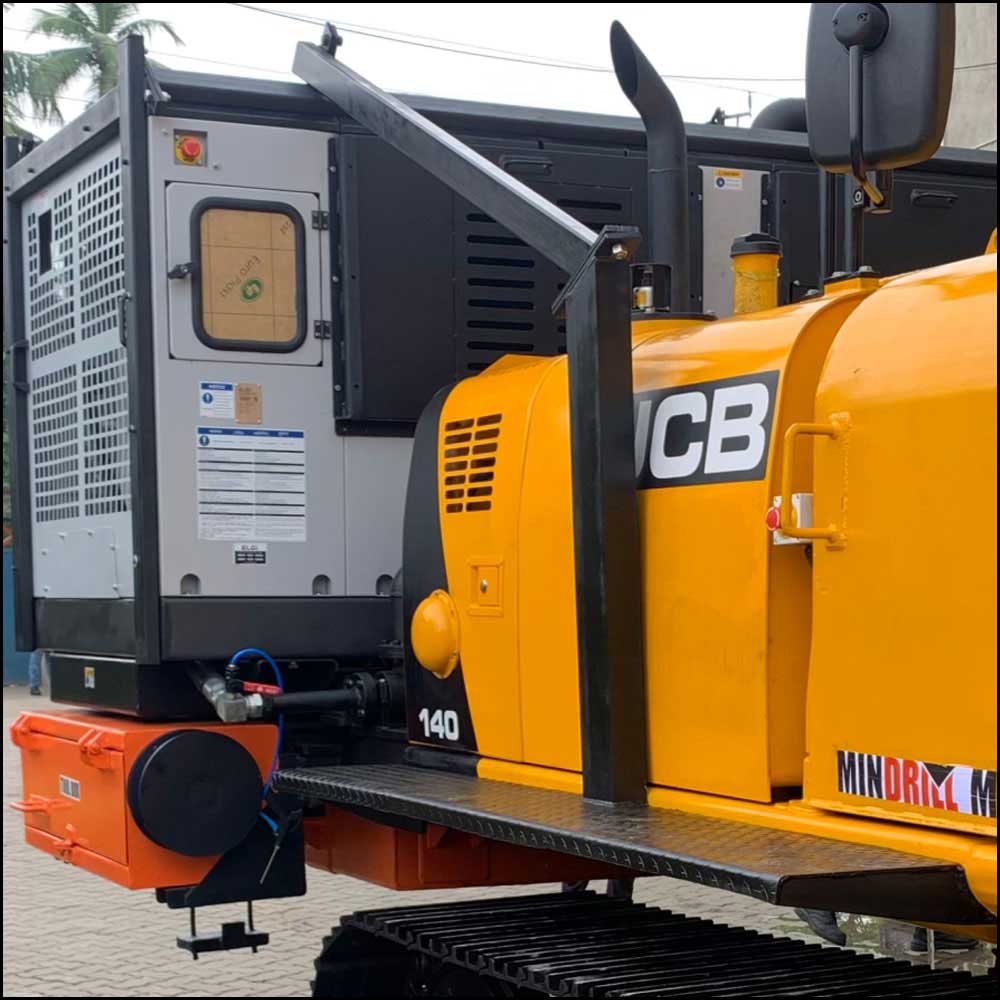

INTEGRATION WITH EXCAVATOR & AIR COMPRESSORS
Integration options available for all excavators and air compressors

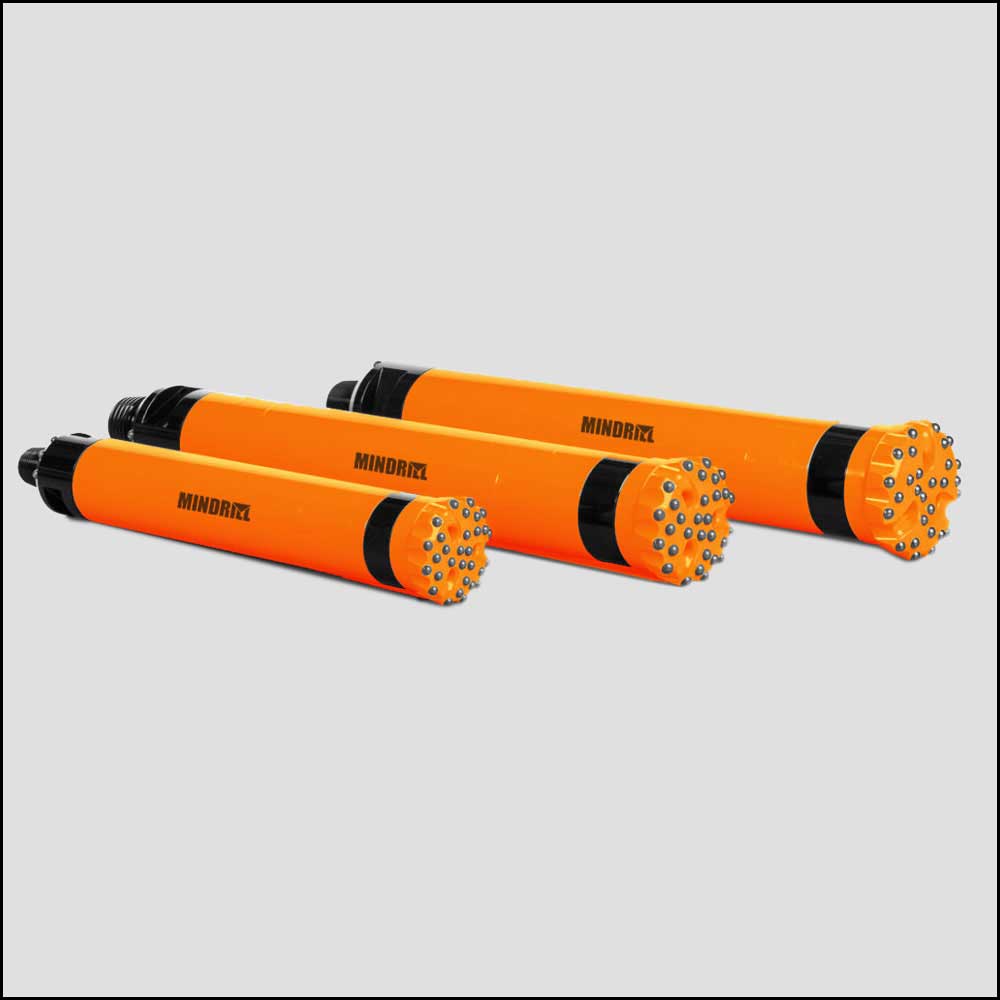

POWERFUL & COST EFFECTIVE DTH HAMMER DRILLING
Powerful and cost effective DTH hammer drilling from 4`` to 6.5``

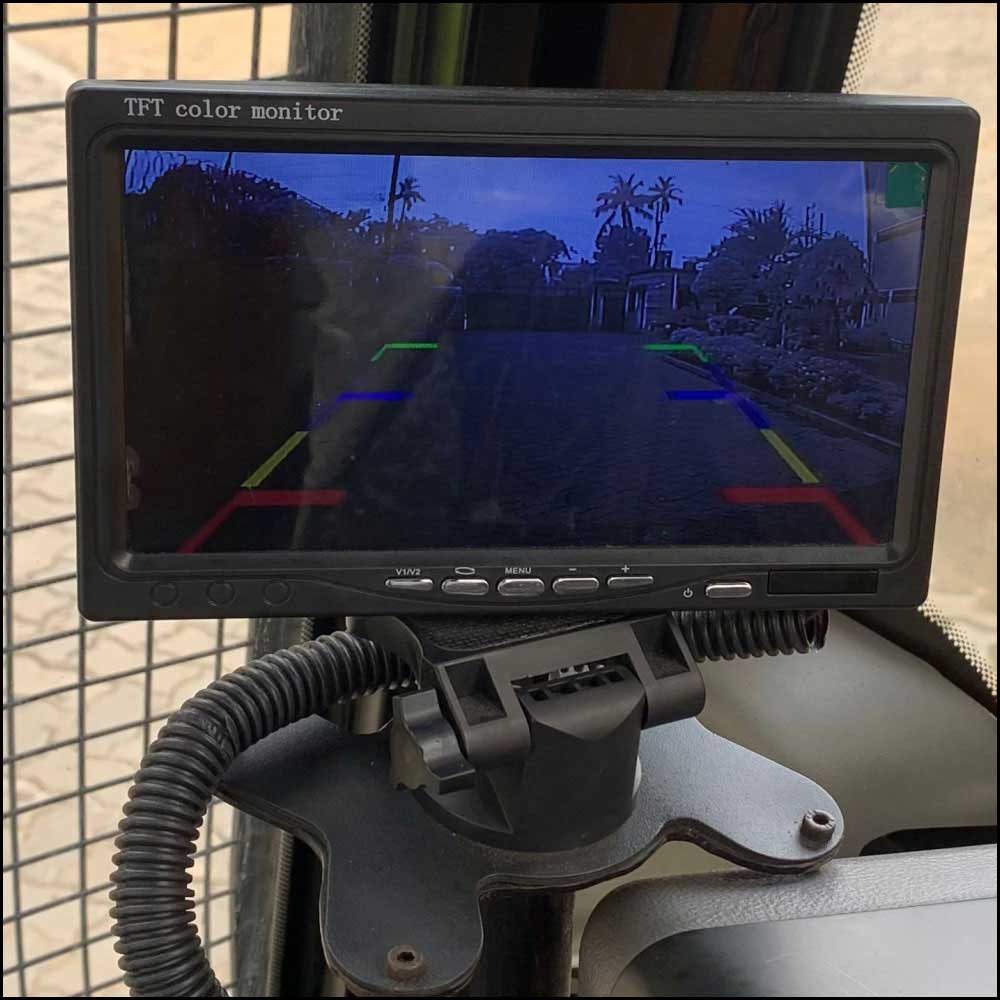

BACKUP CAMERA
Backup camera integrated into operator cabin for enhanced safety

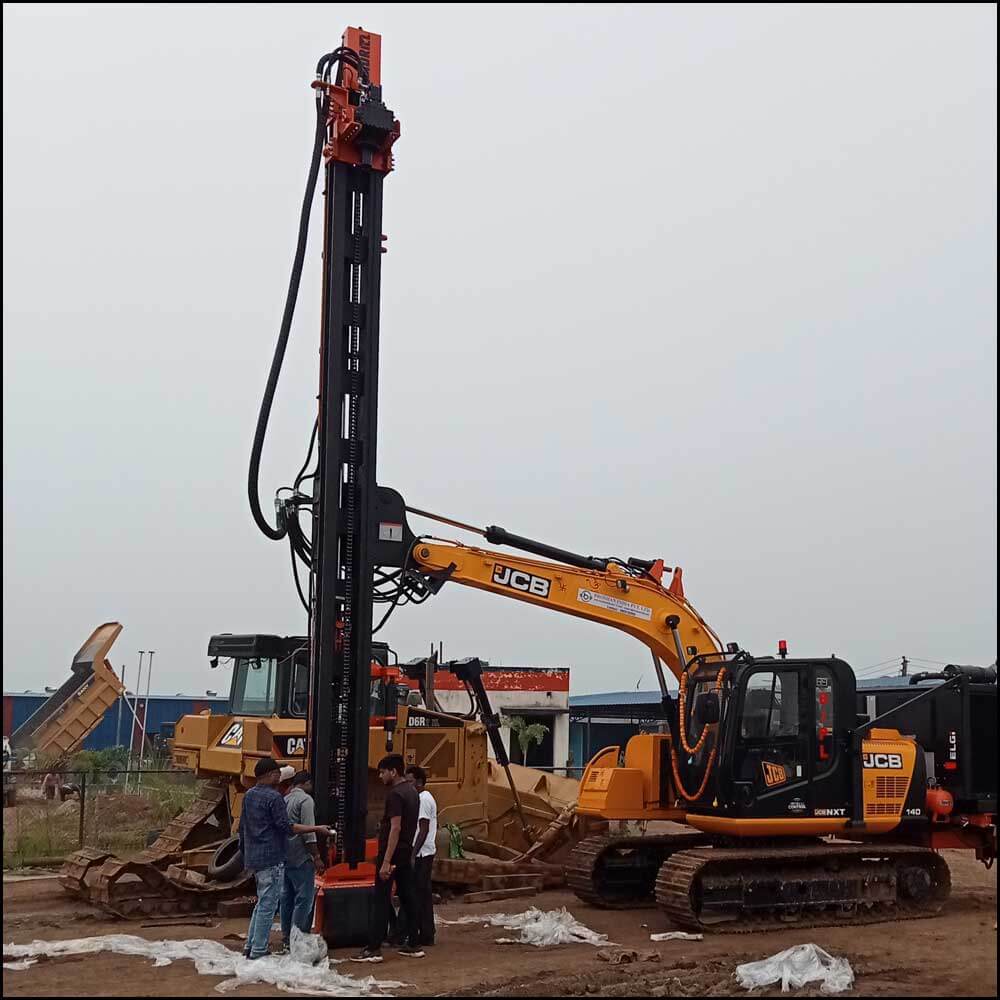

VERSATILE DESIGN
Wide range of applications including mining (coal, iron ore, limestone, bauxite), construction canal/trenching, and solar projects
Technical Specifications:
| Type of Drill Rig : | Blast Hole Drill Rig (DTH) |
| Drilling Mode : | Pneumatic DTH Hammer |
| Hole Diameter : | 115 to 165 mm |
| Drilling Depth (max.) @ 6.5″ Dia. : | 18 m |
| Drill Tube Length : | 3 m to 9 m |
| Application : | • Open Cast Mining (Coal, Iron Ore, Limestone, Bauxite, etc) • Construction Projects • Canal/Trenching Works • Solar Projects |
| Compatible Excavator : | • 14-ton class for Ø 6.5″ and 6 m drilling • 20-ton class for Ø 6″ and 9 m drilling • Integration available for all excavators makes |
| Compatible Compressor : | • 575 cfm/225 psi class for Ø 6.5″ and 6 m drilling • 600 cfm/200 psi class for Ø 6.5″ and 9 m drilling |
| Rotation Motor RPM (continuous, max.) : | 380 RPM |
| Rotation Motor Torque (continuous, max.) : | 950 Nm |
| Feed System : | Chain, Steel Rope & Hydraulically Operated |
| Attachment Control System : | Electronic Integrated into Excavator Cabin Dashboard |
| Compressor Control System : | Electronic, Integrated into Excavator Cabin Dashboard |
| Tilting Bracket : | Hydraulic |
| Mast Locking System : | Hydraulic |
| Air Cylinder : | Hydraulic |
| Rod Changer : | Hydraulic |
| Water Flow : | 18-24 ltr/min |
| Water Tank Capacity : | 400 ltr |
| Compressor Diesel Tank Capacity : | 500 ltr |
| Type of Drill Rig : | Blast Hole Drill Rig (DTH) |
| Drilling Mode : | Pneumatic DTH Hammer |
| Hole Diameter : | 4″ to 6½” |
| Drilling Depth (max.) @ 6.5″ Dia. : | 60 ft |
| Drill Tube Length : | 10 ft to 30 ft |
| Application : | • Open Cast Mining (Coal, Iron Ore, Limestone, Bauxite, etc) • Construction Projects • Canal/Trenching Works • Solar Projects |
| Compatible Excavator : | • 14-ton class for Ø 6.5″ and 6 m drilling • 20-ton class for Ø 6″ and 9 m drilling • Integration available for all excavators makes |
| Compatible Compressor : | • 575 cfm/225 psi class for Ø 6.5″ and 6 m drilling • 600 cfm/200 psi class for Ø 6.5″ and 9 m drilling |
| Rotation Motor RPM (continuous, max.) : | 380 RPM |
| Rotation Motor Torque (continuous, max.) : | 950 Nm |
| Feed System : | Chain, Steel Rope & Hydraulically Operated |
| Attachment Control System : | Electronic Integrated into Excavator Cabin Dashboard |
| Compressor Control System : | Electronic, Integrated into Excavator Cabin Dashboard |
| Tilting Bracket : | Hydraulic |
| Mast Locking System : | Hydraulic |
| Air Cylinder : | Hydraulic |
| Rod Changer : | Hydraulic |
| Water Flow : | 4.75 to 6.34 gal/min |
| Water Tank Capacity : | 105 gal |
| Compressor Diesel Tank Capacity : | 132 gal |
- Metric
-
Type of Drill Rig : Blast Hole Drill Rig (DTH) Drilling Mode : Pneumatic DTH Hammer Hole Diameter : 115 to 165 mm Drilling Depth (max.) @ 6.5″ Dia. : 18 m Drill Tube Length : 3 m to 9 m Application : • Open Cast Mining (Coal, Iron Ore, Limestone, Bauxite, etc)
• Construction Projects
• Canal/Trenching Works
• Solar ProjectsCompatible Excavator : • 14-ton class for Ø 6.5″ and 6 m drilling
• 20-ton class for Ø 6″ and 9 m drilling
• Integration available for all excavators makesCompatible Compressor : • 575 cfm/225 psi class for Ø 6.5″ and 6 m drilling
• 600 cfm/200 psi class for Ø 6.5″ and 9 m drillingRotation Motor RPM (continuous, max.) : 380 RPM Rotation Motor Torque (continuous, max.) : 950 Nm Feed System : Chain, Steel Rope & Hydraulically Operated Attachment Control System : Electronic Integrated into Excavator Cabin Dashboard Compressor Control System : Electronic, Integrated into Excavator Cabin Dashboard Tilting Bracket : Hydraulic Mast Locking System : Hydraulic Air Cylinder : Hydraulic Rod Changer : Hydraulic Water Flow : 18-24 ltr/min Water Tank Capacity : 400 ltr Compressor Diesel Tank Capacity : 500 ltr - Imperial
-
Type of Drill Rig : Blast Hole Drill Rig (DTH) Drilling Mode : Pneumatic DTH Hammer Hole Diameter : 4″ to 6½” Drilling Depth (max.) @ 6.5″ Dia. : 60 ft Drill Tube Length : 10 ft to 30 ft Application : • Open Cast Mining (Coal, Iron Ore, Limestone, Bauxite, etc)
• Construction Projects
• Canal/Trenching Works
• Solar ProjectsCompatible Excavator : • 14-ton class for Ø 6.5″ and 6 m drilling
• 20-ton class for Ø 6″ and 9 m drilling
• Integration available for all excavators makesCompatible Compressor : • 575 cfm/225 psi class for Ø 6.5″ and 6 m drilling
• 600 cfm/200 psi class for Ø 6.5″ and 9 m drillingRotation Motor RPM (continuous, max.) : 380 RPM Rotation Motor Torque (continuous, max.) : 950 Nm Feed System : Chain, Steel Rope & Hydraulically Operated Attachment Control System : Electronic Integrated into Excavator Cabin Dashboard Compressor Control System : Electronic, Integrated into Excavator Cabin Dashboard Tilting Bracket : Hydraulic Mast Locking System : Hydraulic Air Cylinder : Hydraulic Rod Changer : Hydraulic Water Flow : 4.75 to 6.34 gal/min Water Tank Capacity : 105 gal Compressor Diesel Tank Capacity : 132 gal
