Model No. : MPD90
Type : Pneumatic Drifters

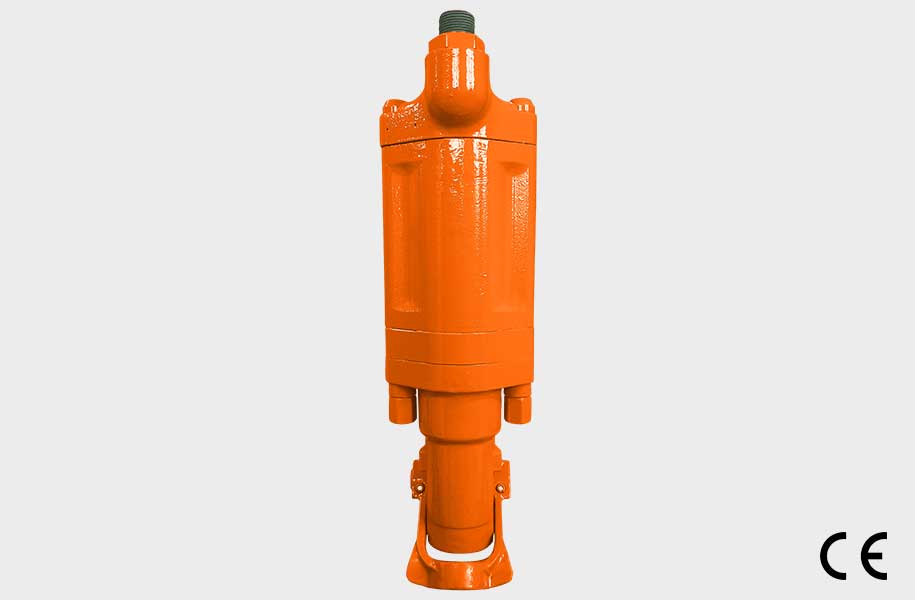

MPD90 Pneumatic Drifter
Based on the industry-leading design, the Mindrill MPD90 with an integrated silencer is an ideal pneumatic drifter for top hammer applications in dimensional stone industries. Compatible with a wide range of drill rigs, the MPD90 is known for its versatility, performance, and high return on investment. This drill has parts interchangeable with the OSM MP90.
Technical Specifications:
| Weight : | 35 kg |
| Length : | 637 mm |
| Piston Diameter : | 90 mm |
| Air Consumption @7 bar : | 70 lpm |
| Drill Still Chuck Hex : | 22 x 108 mm |
| Air Hose Connection : | 25 mm |
| Water Hose Connection : | 13 mm |
| Impact Rate : | 2000 BPM |
| Weight : | 77 lb |
| Length : | 25.1 in |
| Piston Diameter : | 3.54 in |
| Air Consumption @7 bar : | 148 cfm |
| Drill Still Chuck Hex : | 25 mm (1 in) |
| Air Hose Connection : | 1 in |
| Water Hose Connection : | 1/2 in |
| Impact Rate : | 2000 BPM |
- Metric
-
Weight : 35 kg Length : 637 mm Piston Diameter : 90 mm Air Consumption @7 bar : 70 lpm Drill Still Chuck Hex : 22 x 108 mm Air Hose Connection : 25 mm Water Hose Connection : 13 mm Impact Rate : 2000 BPM - Imperial
-
Weight : 77 lb Length : 25.1 in Piston Diameter : 3.54 in Air Consumption @7 bar : 148 cfm Drill Still Chuck Hex : 25 mm (1 in) Air Hose Connection : 1 in Water Hose Connection : 1/2 in Impact Rate : 2000 BPM
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5113 101 000 | 22 x 108 mm (7/8 in x 4¼ in) |
Key Features
- Industry-leading pneumatic drifter for top hammer applications
- Compatible with a wide range of drill rigs
- Simple design and high-productivity drilling
- Integrated noise-reduction silencer
- Both water and air flushing options available
- High-quality internal spares
- Low running & low maintenance cost
- High return on investment
- Parts interchangeable with OSM MP90
