Model No. : YODHA215
Type : Crawler Drills

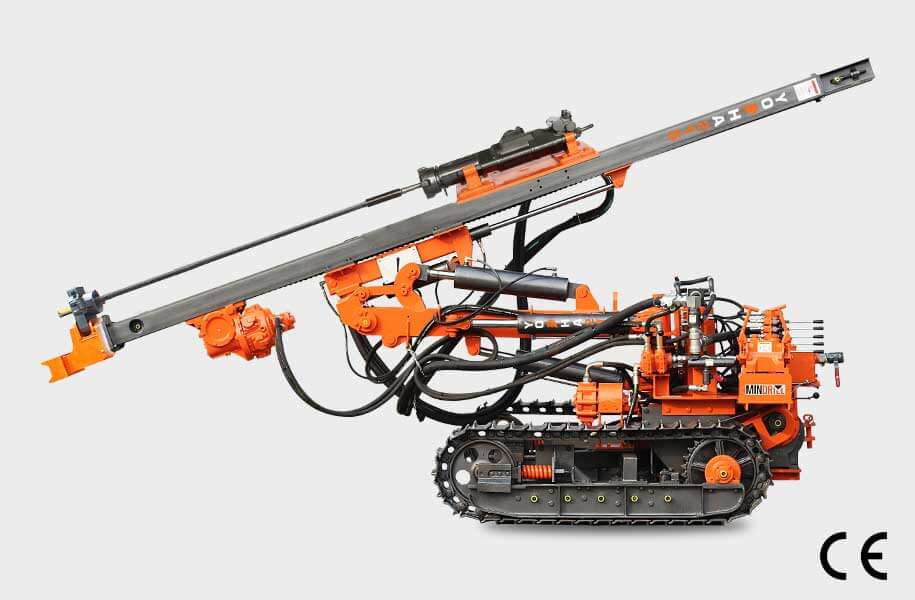

Top Hammer Crawler Drill YODHA215
Mindrill Pneumatic Top Hammer Crawler Drill YODHA215 comes with 5 hp air motor piston steered with a piston-driven rotary head with adequate torque while dealing with difficult formations. The machine is designed with both DTH drilling & Drifter drilling functionality.
Crawler Drill YODHA215 – TH Version
Top Hammer Crawler Drilling Rig YODHA215 is applicable for all types of rocks (hard/soft). Its combined rotational movement helps to crush down the rocks in an efficient manner. Besides, this pneumatic rock drill is suitable to make horizontal holes in tunnel construction & mining.
Technical Specifications:
| Carrier | |
|---|---|
| Tramming speed : | 3.2 km/h |
| Traction force : | 17 kN |
| Track oscillation : | ±20° |
| Ground clearance : | 230 mm |
| Hill climbing ability : | 30% |
| Pneumatic – driven chain feed | |
|---|---|
| Feed length : | 3665 mm |
| Max. feed rate : | 0.3 m/s |
| Feed force pull up : | 1800 kg |
| Feed force pull down : | 2140 kg |
| Total length : | 5130 mm |
| Travel length : | 3565 mm |
| Weight | |
|---|---|
| Weight: | 2770 kg |
| Height and length | |
|---|---|
| Overall length: | 4700 mm |
| Width : | 1750 mm |
| Height (Guide horizontal) : | 2600 mm |
| Depth of drilling (TH) : | 6 – 18 mtr |
| Hole range | |
|---|---|
| Hole Range (TH): | 46 – 76 mm |
| Carrier | |
|---|---|
| Tramming speed : | 2 mph |
| Traction force : | 3821 lbf |
| Track oscilation : | ±20° |
| Ground clearance : | 9 in |
| Hill climbing ability : | 30% |
| Pneumatic – driven chain feed | |
|---|---|
| Feed length : | 12.68 ft |
| Max. feed rate : | 59.0 ft/min |
| Feed force pull up : | 3970 LBS |
| Feed force pull down : | 4720 LBS |
| Total length : | 16.83 ft |
| Travel length : | 11.69 ft |
| Weight | |
|---|---|
| Weight: | 6106 LBS |
| Height and length | |
|---|---|
| Overall length: | 185 in |
| Width : | 69 in |
| Height (Guide horizontal) : | 102 in |
| Depth of drilling (TH) : | 20 – 60 ft |
| Hole range | |
|---|---|
| Hole Range (TH): | 1.75 – 3 in |
- Metric
-
Carrier Tramming speed : 3.2 km/h Traction force : 17 kN Track oscillation : ±20° Ground clearance : 230 mm Hill climbing ability : 30% Pneumatic – driven chain feed Feed length : 3665 mm Max. feed rate : 0.3 m/s Feed force pull up : 1800 kg Feed force pull down : 2140 kg Total length : 5130 mm Travel length : 3565 mm Weight Weight: 2770 kg Height and length Overall length: 4700 mm Width : 1750 mm Height (Guide horizontal) : 2600 mm Depth of drilling (TH) : 6 – 18 mtr Hole range Hole Range (TH): 46 – 76 mm - Imperial
-
Carrier Tramming speed : 2 mph Traction force : 3821 lbf Track oscilation : ±20° Ground clearance : 9 in Hill climbing ability : 30% Pneumatic – driven chain feed Feed length : 12.68 ft Max. feed rate : 59.0 ft/min Feed force pull up : 3970 LBS Feed force pull down : 4720 LBS Total length : 16.83 ft Travel length : 11.69 ft Weight Weight: 6106 LBS Height and length Overall length: 185 in Width : 69 in Height (Guide horizontal) : 102 in Depth of drilling (TH) : 20 – 60 ft Hole range Hole Range (TH): 1.75 – 3 in
Recommended Air Compressor TH
| Part No. | Model | Free Air Delivery (FAD) | Operating Pressure |
|---|---|---|---|
| 5114 106 000 50 | YODHA215 | 600 cfm (16990 l/min) | 100 psi (6.89 bar) |
Key Features
- Heavy duty boom without cut pin bush system for higher efficiency & easy transportation
- Wide coverage of vertical, horizontal and angle drilling positions through advanced boom and guide setup
- Single man operated high production drill rig
- Capable of both DTH and drifting
- Quick conversion kit for switching between DTH & top hammer drilling
- Two independent, air motor powered track assemblies on either side
- Reliable self-propulsion
- Powerful feed system with strong and heavy feed chain which can exert loads of up to 2200 kgf on either side
- Centralized control placed on track assembly for quick and easy access
- Heavy duty tow hitch for attaching and towing air compressor
- Rugged construction and advanced design ensure power and reliability over long term
- Low running costs
