Model No. : YODHA200
Type : Crawler Drills

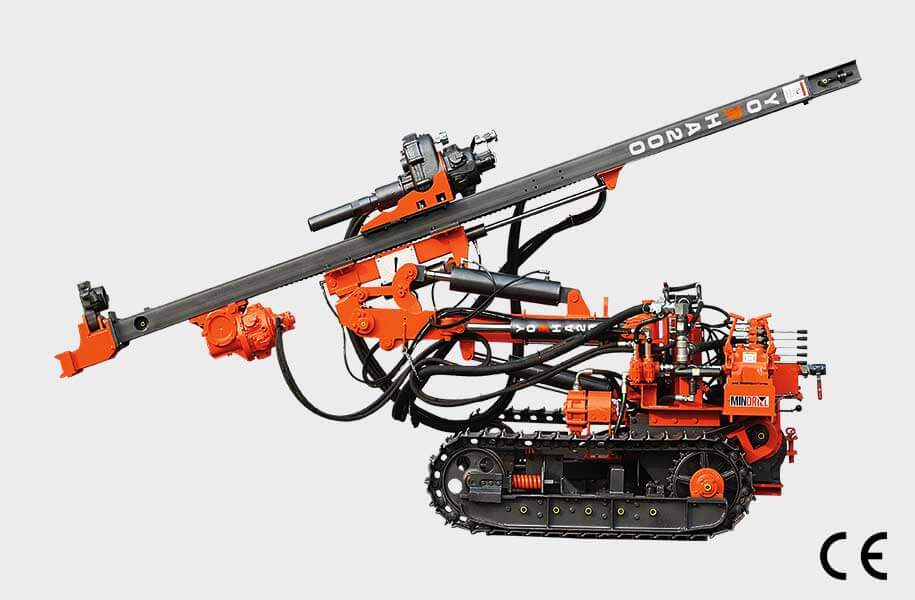

DTH Crawler Drill YODHA200
Mindrill Pneumatic DTH Crawler Drill YODHA200 comes with a 5 hp air motor piston steered with a piston-driven rotary head with adequate torque while dealing with difficult formations. The machine is designed with both DTH drilling & Drifter drilling functionality.
Benefits of Crawler Drilling Rig:
DTH Crawler Drilling rig YODHA200 is applicable for all types of rocks (hard/soft). Its combined rotational movement helps to crush down the rocks in an efficient manner. Besides, this pneumatic rock drill is suitable to make horizontal holes in tunnel construction & mining.
Technical Specifications:
| Carrier | |
|---|---|
| Tramming speed : | 3.2 km/h |
| Traction force : | 17 kN |
| Track oscilation : | ±20° |
| Ground clearance : | 230 mm |
| Hill climbing ability : | 30% |
| Pneumatic – driven chain feed | |
|---|---|
| Feed length : | 3665 mm |
| Max. feed rate : | 0.3 m/s |
| Feed force pull up : | 1800 kg |
| Feed force pull down : | 2140 kg |
| Total length : | 5130 mm |
| Travel length : | 3565 mm |
| Weight | |
|---|---|
| Weight: | 2885 kg |
| Height and length | |
|---|---|
| Overall length: | 4700 mm |
| Width : | 1750 mm |
| Height (Guide horizontal) : | 2600 mm |
| Depth of drilling (DTH) : | 15 mtr |
| Hole range | |
|---|---|
| Hole Range (DTH): | 115-121 mm |
| Carrier | |
|---|---|
| Tramming speed : | 2 mph |
| Traction force : | 3821 lbf |
| Track oscilation : | ±20° |
| Ground clearance : | 9 in |
| Hill climbing ability : | 30% |
| Pneumatic – driven chain feed | |
|---|---|
| Feed length : | 12.68 ft |
| Max. feed rate : | 59.0 ft/min |
| Feed force pull up : | 3970 LBS |
| Feed force pull down : | 4720 LBS |
| Total length : | 16.83 ft |
| Travel length : | 11.69 ft |
| Weight | |
|---|---|
| Weight: | 6360 LBS |
| Height and length | |
|---|---|
| Overall length: | 185 in |
| Width : | 69 in |
| Height (Guide horizontal) : | 102 in |
| Depth of drilling (DTH) : | 50 ft |
| Hole range | |
|---|---|
| Hole Range (DTH): | 4.5–4.75 in |
- Metric
-
Carrier Tramming speed : 3.2 km/h Traction force : 17 kN Track oscilation : ±20° Ground clearance : 230 mm Hill climbing ability : 30% Pneumatic – driven chain feed Feed length : 3665 mm Max. feed rate : 0.3 m/s Feed force pull up : 1800 kg Feed force pull down : 2140 kg Total length : 5130 mm Travel length : 3565 mm Weight Weight: 2885 kg Height and length Overall length: 4700 mm Width : 1750 mm Height (Guide horizontal) : 2600 mm Depth of drilling (DTH) : 15 mtr Hole range Hole Range (DTH): 115-121 mm - Imperial
-
Carrier Tramming speed : 2 mph Traction force : 3821 lbf Track oscilation : ±20° Ground clearance : 9 in Hill climbing ability : 30% Pneumatic – driven chain feed Feed length : 12.68 ft Max. feed rate : 59.0 ft/min Feed force pull up : 3970 LBS Feed force pull down : 4720 LBS Total length : 16.83 ft Travel length : 11.69 ft Weight Weight: 6360 LBS Height and length Overall length: 185 in Width : 69 in Height (Guide horizontal) : 102 in Depth of drilling (DTH) : 50 ft Hole range Hole Range (DTH): 4.5–4.75 in
Recommended Air Compressor DTH
| Part No. | Model | Free Air Delivery (FAD) | Operating Pressure |
|---|---|---|---|
| 5114 106 000 | YODHA200 | 450-500 cfm (12742-14158 l/min) | 150-200 psi (10.34-13.78 bar) |
Key Features
- Air motor piston driven with rotary head with adequate torque
- Capable to drill holes of 115-121 mm (4.5 – 4.75 in) in diameter
