Model No. : SPIDER 250TH
Type : Crawler Drills

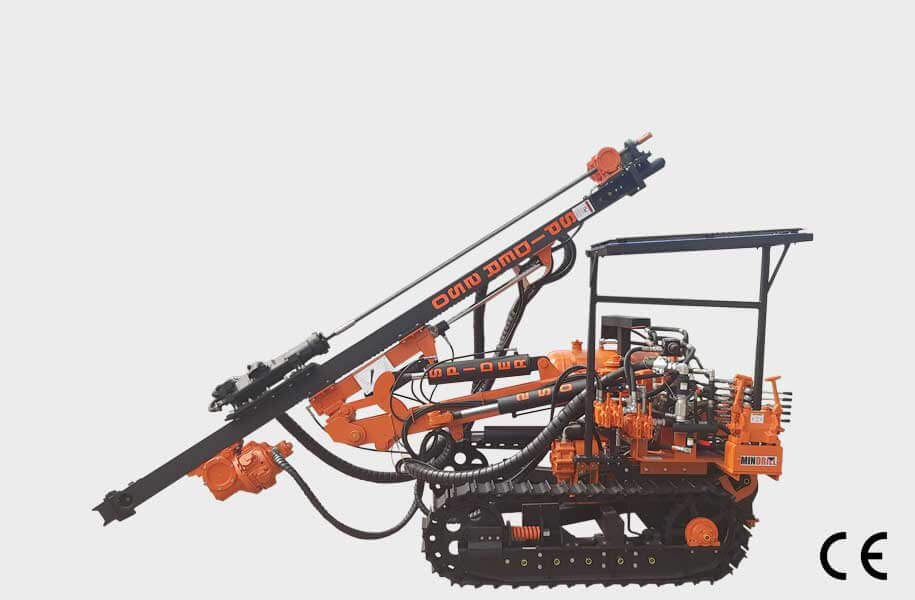

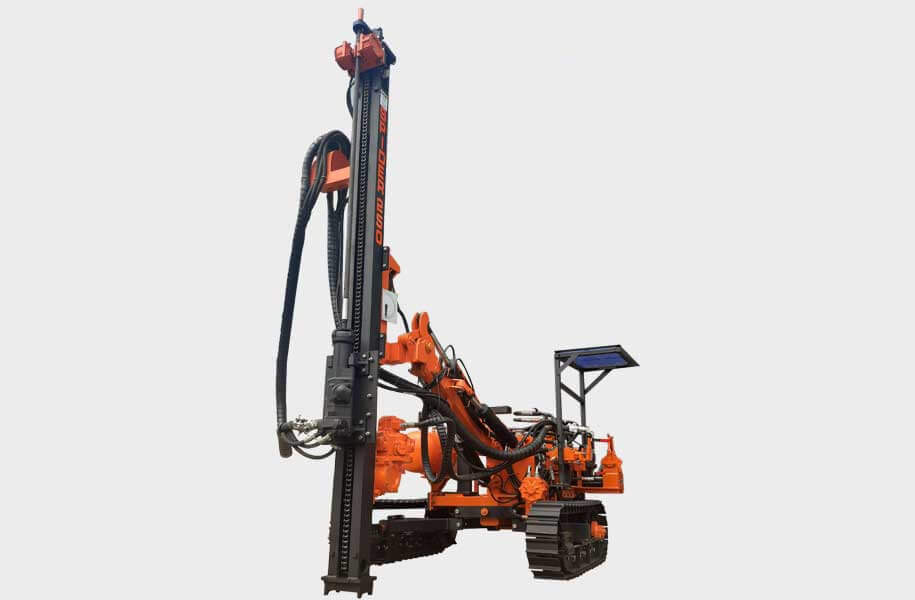

TH Crawler Drill SPIDER 250
Crawler Drill SPIDER 250 TH is a specially designed crawler drill rig that is perfect for roof bolting applications in narrow underground tunnels or mines. The track chain mounted self-propelled design makes it easy to use, and the pneumatic automatic rod catcher means quick and easy rod changing. There’s also a water flushing option available, and the overhead guard ensures operator safety. This simple and robust solution can be customised to your specific needs.
Key Features
- Specially designed for roof bolting applications in narrow underground tunnels or mines
- Track chain mounted self-propelled crawler drill rig
- Pneumatic automatic rod catcher for quick rod changing
- Water flushing option available
- Overhead guard for operator safety
- Simple and robust solution
- Customizable design as per application
- Based on proven, market-leading design
Technical Specifications:
| Carrier | |
| Tramming speed : | 3.2 km/h |
| Traction force : | 17 kN |
| Track oscillation : | ±20° |
| Ground clearance : | 230 mm |
| Hill climbing ability : | 30° |
| Pneumatic – driven chain feed | |
| Feed length : | 3665 mm |
| Max. feed rate : | 0.3 m/s |
| Feed force pull up : | 1800 kg |
| Feed force pull down : | 2140 kg |
| Total length : | 5130 mm |
| Travel length : | 3565 mm |
| Dimension | |
| Overall length : | 4000 mm |
| Width : | 1750 mm |
| Height (Guide horizontal) : | 2600 mm |
| Weight : | 3200 kg |
| Hole Specifications | |
| Hole dia (TH) : | 41 mm |
| Hole depth (TH) : | 6 m |
| Water flushing : | Optional |
| Recommended Air Compressor TH | |
| Free Air Delivery (FAD) : | 600 cfm |
| Operating Pressure : | 100 psi |
| Carrier | |
| Tramming speed : | 2 mph |
| Traction force : | 3821 lbf |
| Track oscillation : | ±20° |
| Ground clearance : | 9 in |
| Hill climbing ability : | 30° |
| Pneumatic – driven chain feed | |
| Feed length : | 12.68 ft |
| Max. feed rate : | 59.0 ft/min |
| Feed force pull up : | 3970 LBS |
| Feed force pull down : | 4720 LBS |
| Total length : | 16.83 ft |
| Travel length : | 11.69 ft |
| Dimension | |
| Overall length : | 157 in |
| Width : | 69 in |
| Height (Guide horizontal) : | 102 in |
| Weight : | 7054 LBS |
| Hole Specifications | |
| Hole dia (TH) : | 1.61in |
| Hole depth (TH) : | 20 ft |
| Water flushing : | Optional |
| Recommended Air Compressor TH | |
| Free Air Delivery (FAD) : | 16990 l/min |
| Operating Pressure : | 6.89 bar |
- Metric
-
Carrier Tramming speed : 3.2 km/h Traction force : 17 kN Track oscillation : ±20° Ground clearance : 230 mm Hill climbing ability : 30° Pneumatic – driven chain feed Feed length : 3665 mm Max. feed rate : 0.3 m/s Feed force pull up : 1800 kg Feed force pull down : 2140 kg Total length : 5130 mm Travel length : 3565 mm Dimension Overall length : 4000 mm Width : 1750 mm Height (Guide horizontal) : 2600 mm Weight : 3200 kg Hole Specifications Hole dia (TH) : 41 mm Hole depth (TH) : 6 m Water flushing : Optional Recommended Air Compressor TH Free Air Delivery (FAD) : 600 cfm Operating Pressure : 100 psi - Imperial
-
Carrier Tramming speed : 2 mph Traction force : 3821 lbf Track oscillation : ±20° Ground clearance : 9 in Hill climbing ability : 30° Pneumatic – driven chain feed Feed length : 12.68 ft Max. feed rate : 59.0 ft/min Feed force pull up : 3970 LBS Feed force pull down : 4720 LBS Total length : 16.83 ft Travel length : 11.69 ft Dimension Overall length : 157 in Width : 69 in Height (Guide horizontal) : 102 in Weight : 7054 LBS Hole Specifications Hole dia (TH) : 1.61in Hole depth (TH) : 20 ft Water flushing : Optional Recommended Air Compressor TH Free Air Delivery (FAD) : 16990 l/min Operating Pressure : 6.89 bar
Ordering Part No.
| Part No. |
|---|
| 5114 106 000 52 |
